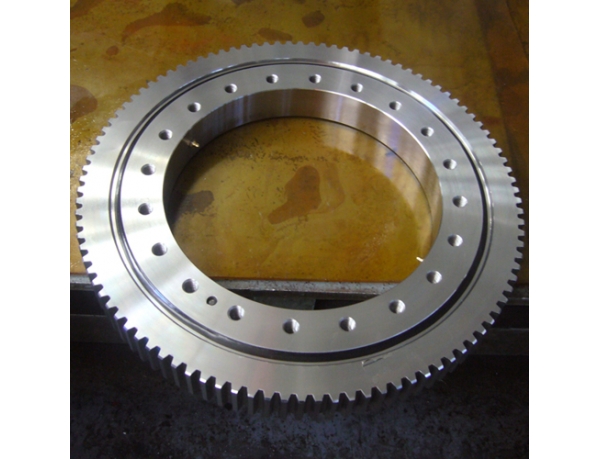

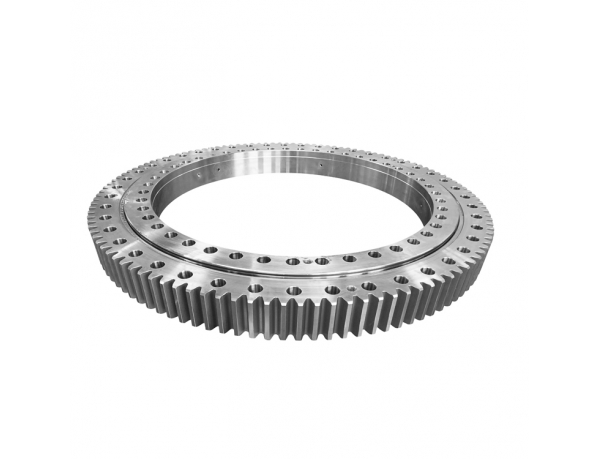

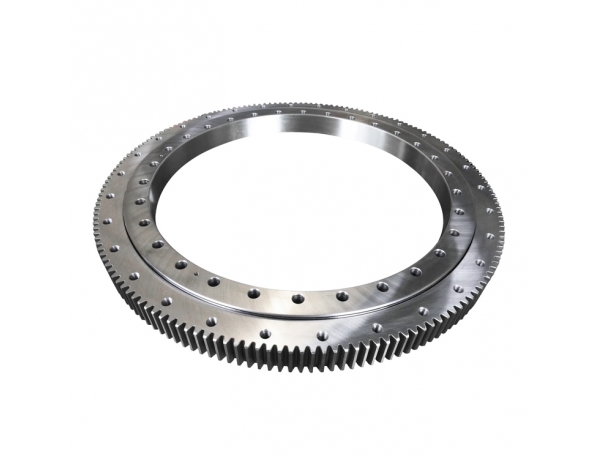

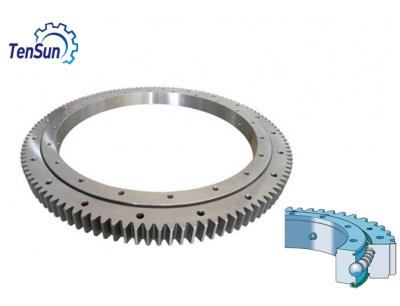

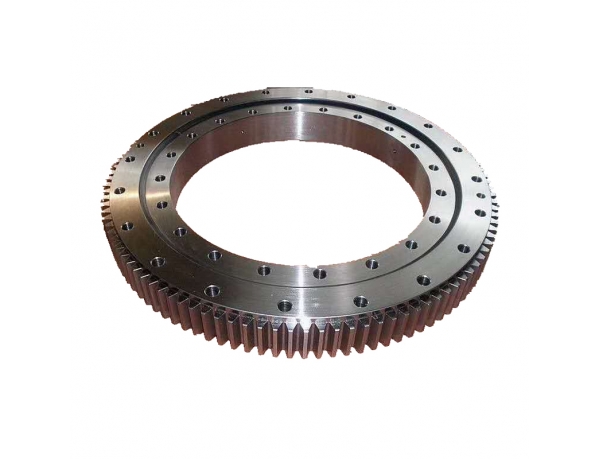

01 Series Four Point Contact Ball Slewing Bearing
Product Description:
The single row ball contact slewing ring gear and swing bearing is an example of highest quality standard. It is made using precise machining, high controlled hardening process, sufficient inspection in process and qualified materials.
The ball size is generally chosen with respect to the axial load and radial load coming on the Slewing bearing.
It has wide application. The ball swing bearing has high loading capability and high speed. Our swing circle bearings have been applied in construction equipment, lifting loaders, forklift loaders, small cranes, excavators...
The range of Tensun's Single row four point ball contact slewing ring is 250mm-8500mm.
Bearing features
Depending on their design, slewing bearings have the following features:
* High stiffness and strength for tough application
* Low friction
* Long service life
* High load carrying capacity

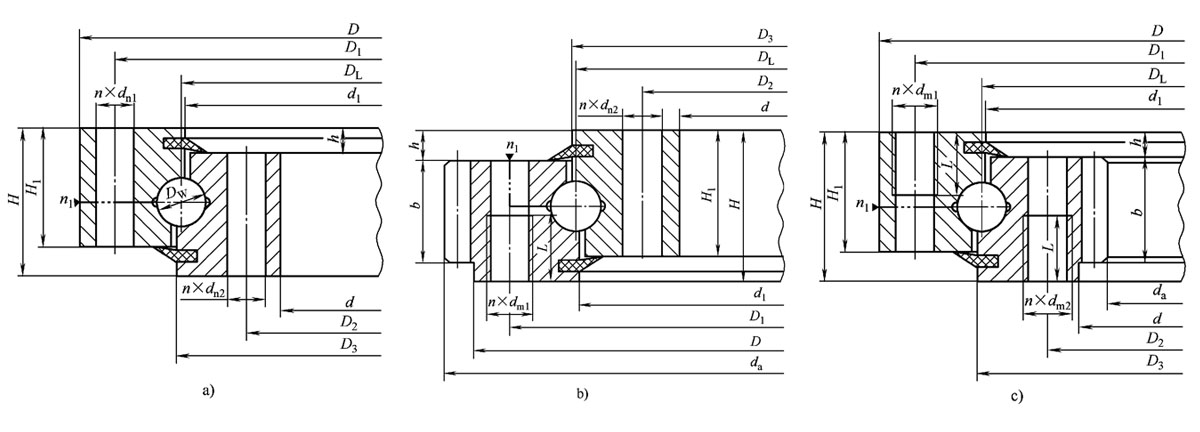

* Three types: internally geared, externally geared and without gear versions
* This series comes with induction hardened raceways. Geared can be provided with induction hardened teeth
* High stiffness and strength for tough application
* Low friction
* Long service life
* High load carrying capacity
* Three types: internally geared, externally geared and without gear versions
* This series comes with induction hardened raceways. Geared can be provided with induction hardened teeth
-
